    M-Audio Ensemble AIR 192|4 AIR 192|4 Vocal Studio Pro Kit with USB Interface, NOVA Black Microphone and HDH40 Headphones

    269.99 Excl. tax 1 In stock Available in store: Check availability

    Available in store

    Close

    Product description

     Your home studio simplified




    The AIR 192 | 4 Vocal Studio Pro is the convenient and affordable solution for recording projects. Combining the AIR 192 | 4 interface, HDH40 headphones, a Nova Black condenser microphone, an XLR cable & the high-end software suite of the AIR series, you will have everything you need to record vocal tracks, record electric and acoustic instruments and add voiceovers to multimedia projects. With the AIR 192 | 4 Vocal Studio Pro, the combination of powerful hardware and easy-to-use software enables professional-quality audio capture for every recording scenario.



    Features

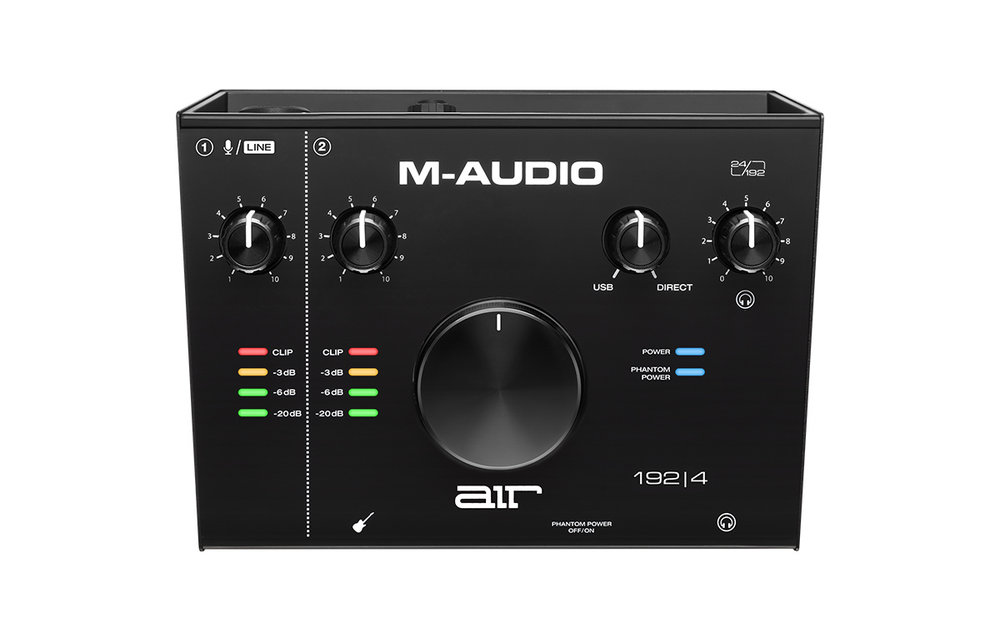

    AIR 192|4 USB Audio Interface
    • 24-bit/192kHz resolution for professional recording and monitoring
    • Hi-Speed USB circuitry gives you the fastest connection, with a class-leading round trip latency of only 2.59ms (dependent on buffer settings)
    • Transparent Crystal™ preamps and ultra-pristine A/D converters for unsurpassed audio recording quality
    • VU LED meters for dialing in the perfect level
    • (1) XLR+1/4" TRS combo input with dedicated signal circuit and (1) 1/4" instrument input with dedicated signal circuit for the most accurate sound available
    • Stereo 1/4" outs; 1/4" headphone out with independent level control
    • Rugged metal chassis; large central control for easy volume adjustment
    • USB/Direct knob for balancing between the input signal and the computer signal
    HDH40 Headphones
    • Premium build quality with 15Hz-22kHz frequency response
    • Powerful 40mm drivers with neodymium magnets offer an immersive audio experience
    • Plush leatherette cushioning with a comfortable over-the-ear design for fatigue free listening
    NOVA Black Microphone
    • Studio-grade large diaphragm condenser microphone with high sensitivity and low self noise captures every subtle nuance
    • Cardiod polar pattern eliminates unwanted ambient noise
    • Smooth, wide-range frequency response covers the entire audible spectrum

    What's Included
    • AIR 192|4
    • USB-C-to-USB-C Cable
    • USB-C-to-USB-A Cable
    • NOVA Black Microphone
    • Microphone Carrying Pouch
    • XLR Microphone Cable
    • Microphone Shock Mount
    • Microphone Windscreen
    • HDH40 Headphones
    • Software Download Cards
    • User Guide
    • Safety and Warranty Manual

    Minimum System Requirements
    macOS: 10.8 Class Compliant
    PC: Windows 7, Windows Driver
    • Standard USB 2.0 or USB-C Port

    Specifications
    All specifications are measured at 20 kHz bandwidth.
    Nova Black Condenser Microphone
    TYPE: Back Electret condenser microphone
    ELEMENT: 18 mm pure aluminum diaphragm capsule
    POLAR PATTERN: Cardioid
    FREQUENCY RESPONSE: 20 Hz - 20 kHz
    SENSITIVITY: -38 dB (0 dB = 1 V/Pa @ 1 kHz)
    RATED IMPEDANCE: 200Ω
    MAXIMUM SPL: 136 dB
    PHANTOM POWER REQUIRED: +48 V
    S/N RATIO: 77 dB
    CURRENT CONSUMPTION: 3 mA
    HDH40 Closed-Back Headphones
    ACOUSTIC DESIGN: Dynamic, Closed
    DRIVER: 40 mm, neodymium
    FREQUENCY RESPONSE: 15 Hz - 22 kHz
    SENSITIVITY: 95 dB +/-3 dB
    RATED IMPEDANCE: 32Ω
    EARPAD: Leatherette
    CABLE LENGTH: 9.8 ft. / 3 m
    AIR 192|4 2-In/2-Out 24/192 USB Audio Interface
    Mic Input 1 (balanced XLR)
    FREQUENCY RESPONSE: 20 Hz - 20 kHz (+0.1 dB)
    DYNAMIC RANGE: 104 dB (A-weighted)
    SIGNAL-TO-NOISE RATIO: 104 dB (+1.0 dBu, A-weighted)
    THD+N: 0.003%
    PREAMP EIN: -128 dBu (max gain, 150 Ω source, A-weighted)
    MAX INPUT LEVEL: +1.5 dBu
    GAIN RANGE: 55 dB
    Line Input 1 (balanced 1/4" [6.35 mm] TRS)
    FREQUENCY RESPONSE: 20 Hz - 20 kHz (+0.05 dB)
    SIGNAL-TO-NOISE RATIO: 101 dB (1 kHz, +4 dBu, A-weighted)
    THD+N: 0.003%
    MAX INPUT LEVEL: 16 dBu
    GAIN RANGE: 55 dB
    Inst Input 2 (unbalanced 1/4" [6.35 mm] TS)
    FREQUENCY RESPONSE: 20 Hz - 20 kHz (+0.05 dB)
    DYNAMIC RANGE: 100 dB (A-weighted)
    SIGNAL-TO-NOISE RATIO: 102 dB (+ 4 dBu, A-weighted)
    THD+N: 0.004%
    MAX INPUT LEVEL: 6 dBu
    INPUT IMPEDANCE: 1 MΩ
    GAIN RANGE: 24 dB
    Main Outputs, L and R (balanced, differential 1/4" [6.35 mm] TRS)
    FREQUENCY RESPONSE: 20 Hz - 20 kHz (+0.06 dB)
    DYNAMIC RANGE / SIGNAL-TO-NOISE RATIO: 102 dB (A-weighted)
    THD+N: 0.005%
    MAX OUTPUT LEVEL: +7 dBu (1 kHz, -1 dBFS)
    Headphone Output (impedance-balanced 1/4" [6.35 mm] TRS)
    THD+N: 0.005%
    OUTPUT IMPEDANCE: 10 Ω
    General
    POWER: USB-bus-powered
    DIMENSIONS (WIDTH X DEPTH X HEIGHT): 6.0" x 2.8" x 7.8" (15.2 cm x 7.1cm x 19.8 cm)
    WEIGHT: 2.0 lbs. 0.9 kg
