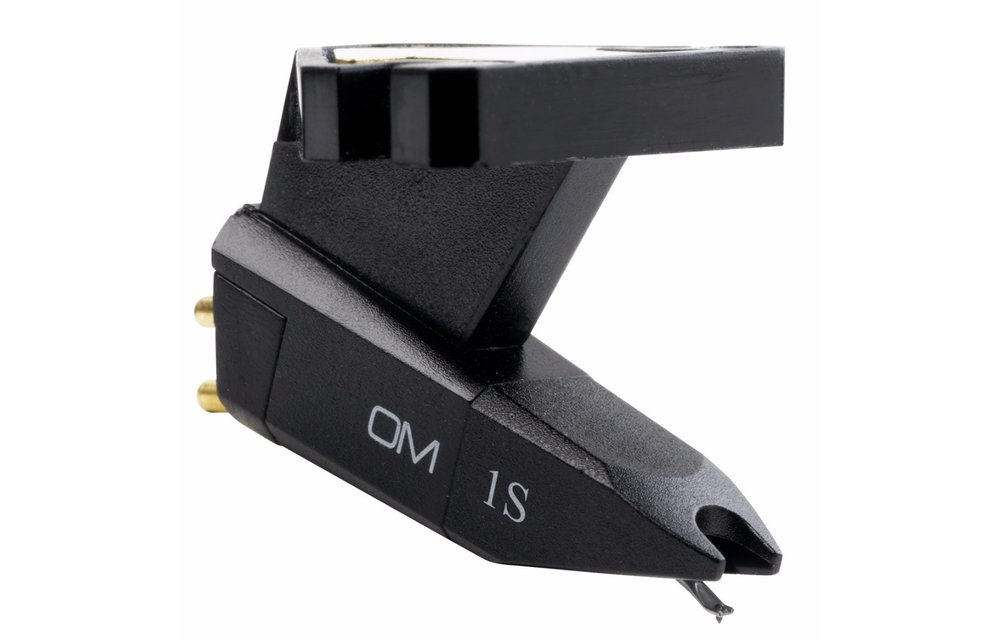

    Ortofon OM 1S Cartouche table tournante

    73.99 Excl. tax 1 In stock Available in store: Check availability

    Available in store

    Close
    Cartridge for turntable OM 1S by Ortofon... Show more

    Product description

    OM 1S Technical data

    Output voltage at 1000 Hz, 5cm/sec.  -  4.5 mV
    Channel balance at 1 kHz  -  2 dB
    Channel separation at 1 kHz  -  20 dB
    Channel separation at 15 kHz  -  12 dB
    Frequency response  -  20-22.000 Hz
    Tracking ability at 315Hz at recommended tracking force *)  -  60 µm
    Compliance, dynamic, lateral  -  20 µm/mN
    Stylus type  -  Spherical
    Stylus tip radius  -  R 18 µm

    *) Typical value

    Tracking force range  -  1.5-2.0 g (15-20 mN)
    Tracking force, recommended  -  1.75 g (17.5 mN)
    Tracking angle  -  20°
    Internal impedance, DC resistance  - 750 Ohm
    Internal inductance  -  450 mH
    Recommended load resistance  -  47 kOhm
    Recommended load capacitance  -  200-500 pF
    Cartridge colour, body/stylus  -  Black/Black
    Cartridge weight incl. extra weight -  5 g
    Cartridge weight excl. extra weight -  2.5 g
    Replacement stylus unit  -  Stylus 5S
