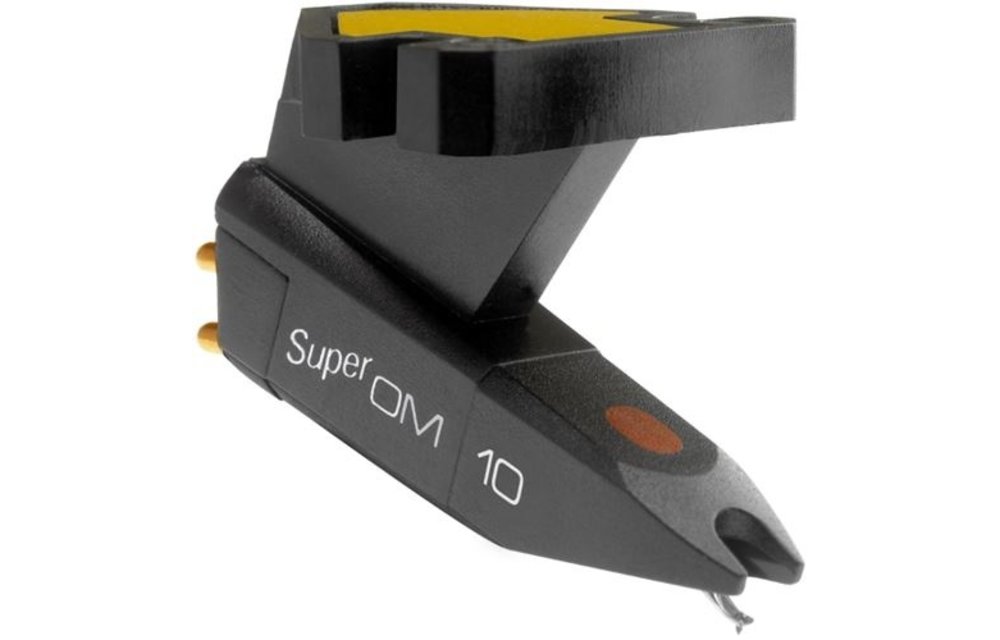

      Ortofon Super OM 10

      96.99 Excl. tax Out of stock Available in store: Check availability

      Available in store

      Close

      Product description

      Technical dataOM Super 10
      Output voltage at 1000 Hz, 5cm/sec.> 4 mV
      Channel balance at 1 kHz< 1,5 dB
      Channel separation at 1 kHz> 22 dB
      Frequency response20-20,000Hz +3/-1 dB
      Frequency range20-24,000Hz
      Tracking ability (315Hz, lateral)> 70 µm
      Compliance, dynamic (lateral)25 µm/mN



      Stylus type
      Elliptical



      Stylus tip radius
       r/R 8/18 µm



      Tracking force range
      1,25-1,75 g



      Recommended tracking force
      1,5 g



      Tracking angle (vertical)
      20°



      Internal impedance, DC resistance
      1 kOhm



      Internal inductance
      580 mH



      Recommended load resistance
      47 kOhm



      Recommended load capacitance
      200 - 500 pF



      Cartridge weight including weight plate
      5 g



      Cartridge weight without weight plate
      2,5 g






      Show more

      Specifications

      SKU
      51413474

      Reviews

      0 from 5Based on 0 reviews
      Create your own review

      There are no reviews written yet about this product..

      Ortofon Super OM 10
      96.99
