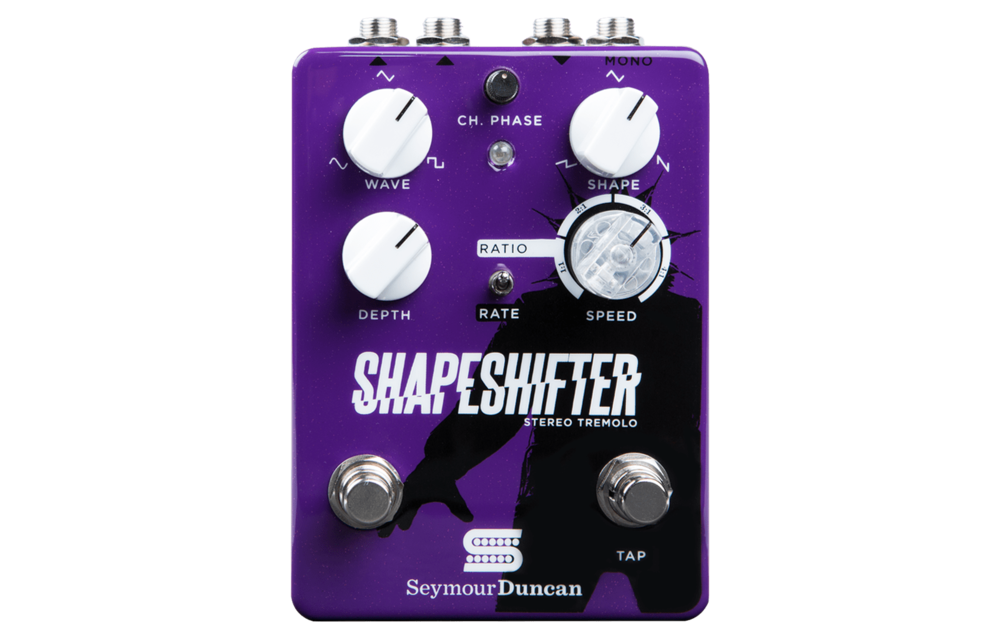

The Shape Shifter is a stereo tremolo pedal designed to deliver the classic textures you love with the capability to render extreme effects such as helicopter chops, piano stabs or backwards swells.
Specifications: Type of Circuitry: Pure analog signal path, Stereo Input/Output, Digital tremolo timing Input Impedance: 1 Meg Ohm Output Impedance: 1.2K Ohm Gain: 2.0dB maximum Max Tremolo Depth: 30dB Max Output before Saturation: 2.5V RMS Noise: < 97dBV Frequency Response: Wideband; -3dB at 3Hz and 50 kHz THD: < 0.3% @ 1 kHz, 1VRMS Control functionality: Depth: Continuously adjustable from 0 to 30dB Rate: Continuously adjustable from 0.5 to 15 Beats per second Rate/Ratio Switch: Works in conjunction with the Tap Tempo Footswitch and the Rate control. Allows setting tempo by direct taps or applies a multiplication factor for faster tempos. Shape (Duty Cycle): Continuously adjustable from 10% to 90% Wave: Continuously adjustable, sine to triangle to square waves Phase Control: Continuously adjust phase between left and right output channels from 0 degrees to 180 degrees Power: 9V battery or 9 - 18 Vdc regulated adapter, center pin negative polarity. Current Consumption: 13mA operate, 12mA bypass Bypass: True hard-wire bypass Dimensions: 3.50" wide X 4.70" deep X 1.60" tall Weight: 0.9 lbs.
