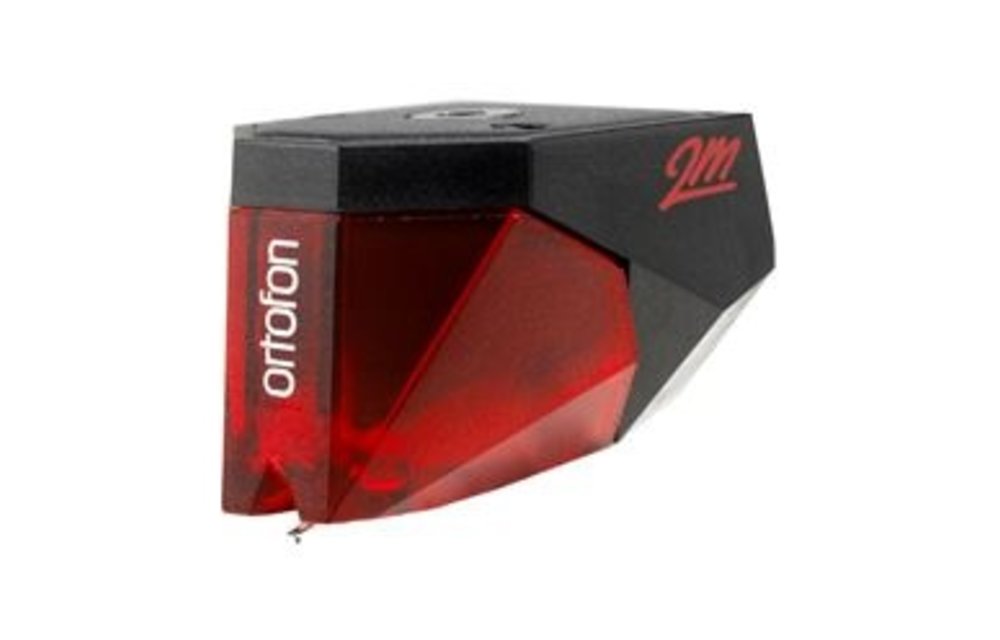

      Ortofon - 2M Red Elliptical Diamond

      127.00 Excl. tax 2 In stock Available in store: Check availability

      Available in store

      Close

      Product description

      Output voltage at 1000 Hz, 5cm/sec.  -  5.5 mV
      Channel balance at 1 kHz   -  1.5 dB
      Channel separation at 1 kHz  -  22 dB
      Channel separation at 15 kHz  -  15 dB
      Frequency response  -  20-20.000 Hz + 3 / - 1 dB
      Tracking ability at 315Hz at recommended tracking force  -  70 µm
      Compliance, dynamic, lateral  -  20 µm/mN
      Stylus type  -  Elliptical
      Stylus tip radius  -  r/R 8/18 µm
      Tracking force range  -  1.6-2.0 g (16-20 mN)
      Tracking force, recommended  - 1.8 g (18 mN)
      Tracking angle  -  20°
      Internal impedance, DC resistance  -  1.3 kOhm
      Internal inductance  -  700 mH
      Recommended load resistance  -  47 kOhm
      Recommended load capacitance  -  150-300 pF
      Cartridge colour, body/stylus  -  Black/Red
      2M standard and 2M Verso cartridges weight  -  7.2 g

      Replacement stylus unit  -  2M Red (interchangeable with 2M Blue and 2M Silver)

      Show more

      Specifications

      Article number
      OR2MRED
      SKU
      2MRED
