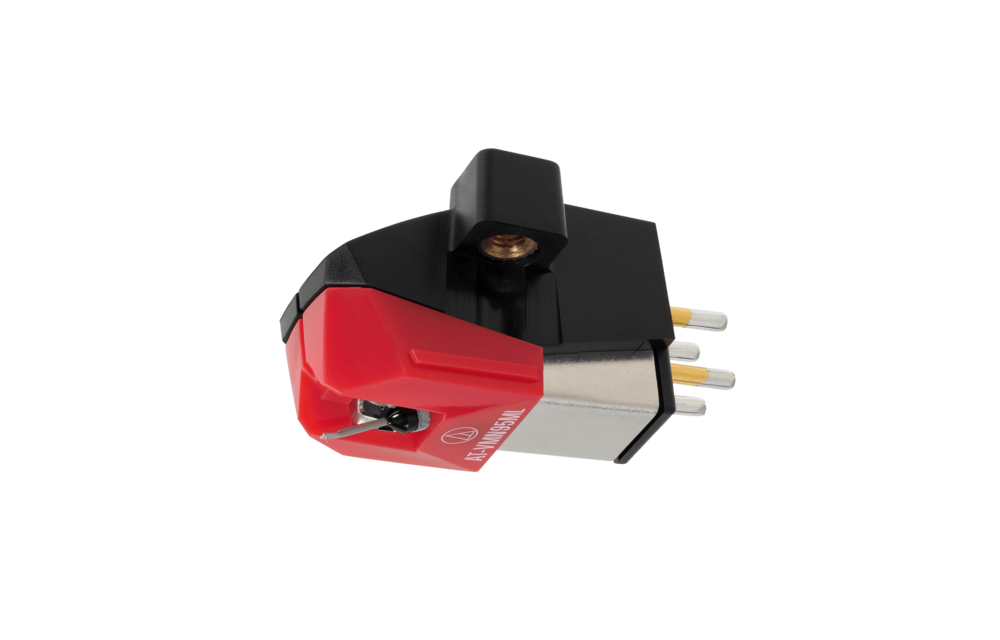

    Audio-technica AT-VM95ML Dual moving magnet Cartridge

    249.99 Excl. tax 1 In stock Available in store: Check availability

    Available in store

    Close
    Dual moving magnet cartridge AT-VM95ML by Audio-Technica... Show more

    Product description

    Cartridge & Stylus
    Frequency Response20-25,000 Hz
    Channel Separation23 (dB at 1 kHz)
    Vertical Tracking Angle23°
    Vertical Tracking Force1.8-2.2 g (2.0 g standard)
    Stylus ConstructionNude square shank
    Recommended Load Impedance47,000 ohms
    Coil Impedance3.3 k ohms (1 kHz)
    DC Resistance485 ohms
    Coil Inductance550 mH (1 kHz)
    Output Voltage3.5 mV (1 kHz, 5 cm/sec.)
    Output Channel Balance1.5 dB (1 kHz)
    Stylus Shape2.2 x 0.12 mil Microlinear
    CantileverAluminum pipe
    Static Compliance20 x 10 – 6 cm / dyne
    Dynamic Compliance10 x 10 – 6 cm / dyne (100 Hz)
    MountingHalf-inch
    Cartridge Weight6.1g
    Dimensions17.2 mm (0.68") H × 18.9 mm (0.74") W × 28.3 mm (1.20") D
    Accessories IncludedTwo 11 mm installation screws, two 8 mm installation screws, two washers, nonmagnetic screwdriver
    ModelAT-VM95ML
    Mounting FeatureHalf-inch mount
    Recommended Load Capacitance100 to 200 pF
    Replacement StylusAT-VMN95ML
    Stylus Size2.2 x 0.12 mil
    TypeVM Stereo Dual Magnet
    Weight6.1 g (0.22 oz)
    Wire Used for CoilT.P. Copper
