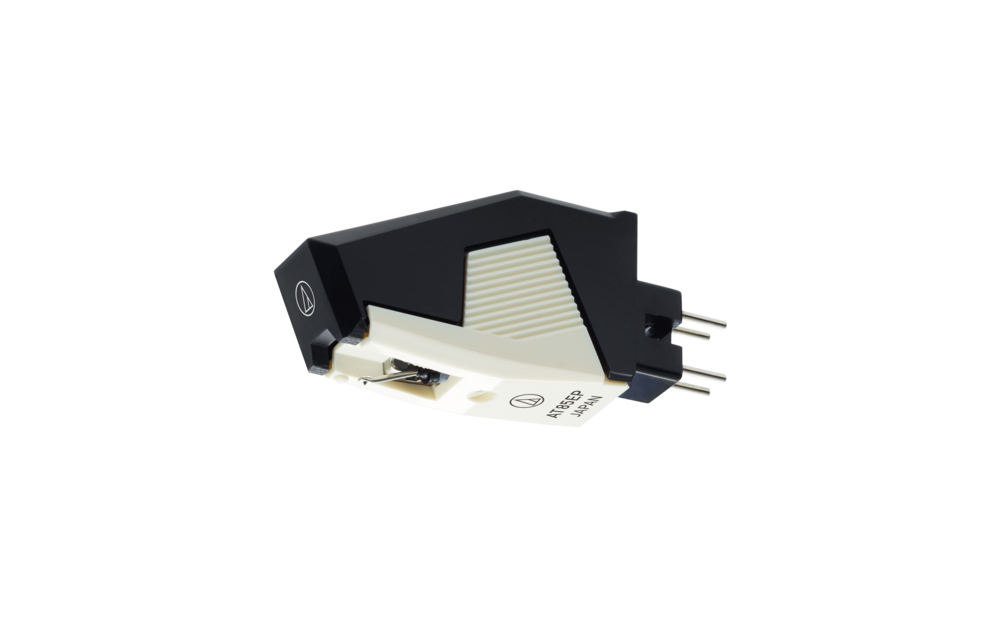

Audio-Technica AT85EP Dual moving magnet cartridge

Name: Audio-Technica Audio-Technica AT85EP Dual moving magnet cartridge
Brand: Audio-Technica
SKU: AT85EP
Price: 59.99 CAD
Availability: InStock

Brand: Audio-Technica

Show all Cartridges

Compare

Audio-Technica AT85EP Dual moving magnet cartridge

59.99 Excl. tax 2 In stock Available in store: Check availability

Dual moving magnet cartridge AT85EP by Audio-technica... Show more

Product description

Cartridge & Stylus
Frequency Response	20-20,000 Hz
Channel Separation	20 (dB at 1 kHz)
Vertical Tracking Angle	20°
Vertical Tracking Force	1.0-1.5 g (1.25 g standard)
Stylus Construction	Bonded round shank
Recommended Load Impedance	47,000 ohms
Coil Impedance	2.8 k ohms (1 kHz)
DC Resistance	410 ohms
Coil Inductance	400 mH (1 kHz)
Output Voltage	3.5 mV (1 kHz, 5 cm/sec.)
Output Channel Balance	2.0 dB (1 kHz)
Stylus Shape	0.3 x 0.7 mil elliptical
Cantilever	Aluminum pipe
Mounting	P-mount
Dimensions	15.3 mm (0.60") H × 10.0 mm (0.39") W × 35.1 mm (1.38") D
Mounting Feature	P-mount
Recommended Load Capacitance	100 to 200 pF
Replacement Stylus	ATN85EP
Stylus Size	0.3 x 0.7 mil
Type	Dual Magnet
Weight	6.0 g (0.21 oz)
