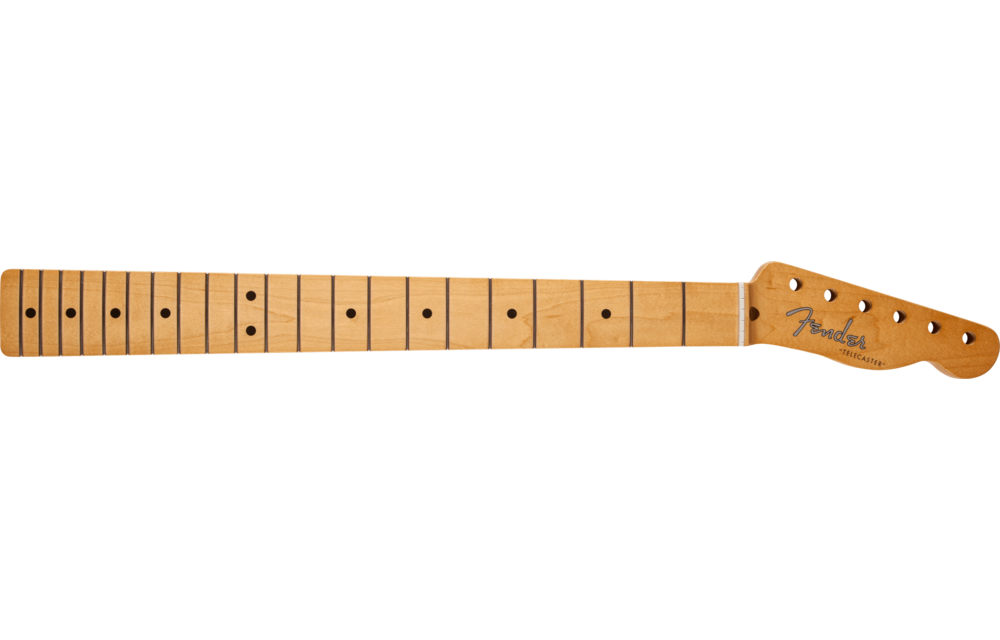

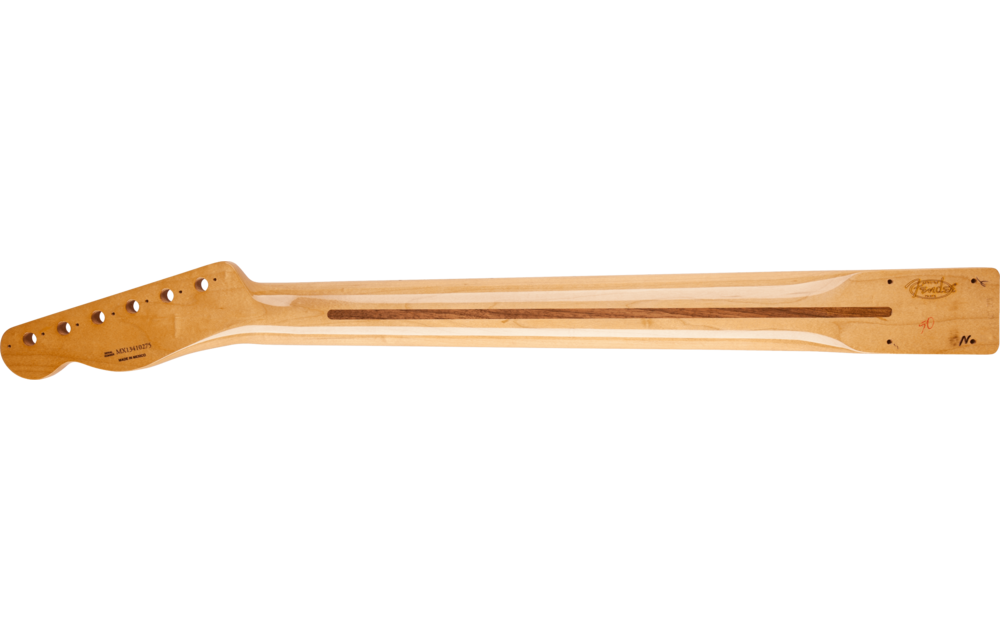

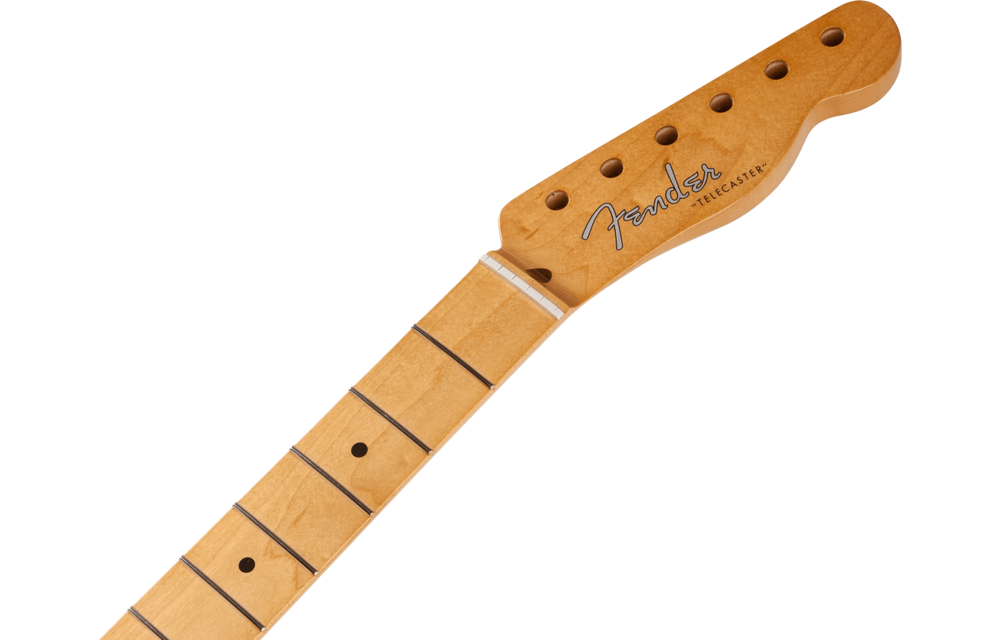

Fender - Classic Series 50's Telecaster® Neck, 21 Vintage Frets, Maple

Crafted at our Ensenada, Mexico, manufacturing facility, this genuine vintage-style Fender Telecaster® guitar maple neck features a comfortable vintage "C" profile and 7.25"-radius maple fingerboard with 21 vintage-style frets.

The nut is pre-slotted with "pilot" string location grooves to make spacing a breeze when performing the final string slot filing, and a gloss urethane finish on the back offers smooth playability.

This replacement neck is for a Fender or Squier® by Fender guitar.

Because Fender genuine replacement necks have not been mounted to guitar bodies, nut slots must be cut by qualified personnel. Other installation processes may be required, such as fret work, fitting the neck to the neck pocket, and other instrument setup procedures. Your local FMIC Authorized Service Center can install genuine replacement necks; find Authorized Service Center locations near you in the “Support” section of fender.com.

General





SERIES

Necks

ORIENTATION

Right-Hand

COLOR

Natural

INSTRUMENT TYPE

Telecaster®

COUNTRY OF ORIGIN

MX





Neck

NECK MATERIAL

Maple

NECK FINISH

Gloss Urethane

NECK SHAPE

Vintage "C"

NECK THICKNESS

1st Fret - .820" (20.82 mm), 12th Fret - .920" (23.36 mm)

NECK MOUNTING

4-Bolt

FINGERBOARD RADIUS

7.25" (184.1 mm)

FINGERBOARD MATERIAL

Maple

POSITION INLAYS

Black Dot

NUMBER OF FRETS

21

TRUSS ROD

Vintage-Style Butt Adjust

TRUSS ROD NUT

Vintage-Style Slotted

STRING NUT

Synthetic Bone

NUT WIDTH

1.650" (42 mm)

NUT MATERIAL

Synthetic Bone





Hardware

TUNER MOUNTING CONFIG

Vintage-style 2-screw













Measurements

DIMENSIONS

3.20x7.10x30.00 IN

SHIPPING WEIGHT

2.45 LB

HEADSTOCK THICKNESS

.540” (13.71 mm)

PEG HOLE DIAMETER

.358” (9.09 mm)

FRET SIZE

Vintage-Style

SCALE LENGTH

25.5" (64.77 cm)

SHIPPING LENGTH

30.00 IN

SHIPPING HEIGHT

3.20 IN

SHIPPING WIDTH

7.10 IN





Miscellaneous

COMMODITY CODE

9209940000

STYLE

Vintage-Style

UNIQUE FEATURES

Each nut is pre-slotted with “pilot” string location grooves to make spacing a breeze when performing the final string slot filing. (Please note: Final string slot filing and nut shaping modification is required to ensure proper fit and performance.)
